Dimension member types

Dimension members are classified by their query type.

What do queries have to do with dimension member types? The dimension members that you see in a data view (and therefore in reports data-entry screens) always result from a data query. The query type affects the behavior of the result set, such as whether it returns a set number of values, or a dynamic number.

What are the member/query types? The member/query types are: Static members, Dynamic members, and Special members.

Static members

The most straightforward query type, it names each member specifically, and only those members are returned. For example, the query selects the Account dimension member named Operating Expenses, and the value returned is that for Operating Expenses.

Dynamic members

A dynamic query does not ask for specific members; instead, it asks for the members relative to another member in the hierarchy, and thus the number of values returned can vary.

A dynamic query uses one of the following predefined options to make the selection from the hierarchy:

  • Member plus children

    Returns the selected member and its child members.

  • Children only

    Returns the child members of the selected member

  • Member plus descendants

    Returns the selected member and all the members situated below it in the structure

  • Descendants only

    Returns all members situated below the selected member in the structure

  • Leaf descendants

    Returns members situated below the selected member that are at the end of the branch (that is, have no other members below it)

  • Non-leaf descendants

    Returns members situated below the selected member that are not at the end of the branch (that is, they have members below them)

Example: Dynamically querying an Account dimension

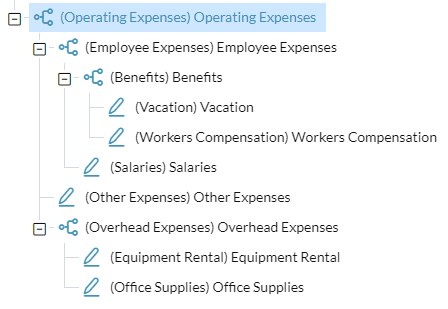

The following figure shows the Operating Expenses branch in the hierarchy of an Account dimension:

The following table shows the result of running each dynamic query type against the above Operating Expenses member:

Selecting this dynamic member type ... Returns these members ...

Member plus children

Operating Expenses, Employee Expenses, Other Expenses, Overhead Expenses

Children only

Employee Expenses, Other Expenses, Overhead Expenses

Member plus descendants

Operating Expenses, Employee Expenses, Benefits, Vacation, Workers Compensation, Salaries, Other Expenses, Overhead Expenses, Equipment Rental, Office Supplies

Descendants only

Employee Expenses, Benefits, Vacation, Workers Compensation, Salaries, Other Expenses, Overhead Expenses, Equipment Rental, Office Supplies

Leaf descendants

Vacation, Workers Compensation, Salaries, Other Expenses, Equipment Rental, Office Supplies

Non-leaf descendants

Employee Expenses, Benefits, Overhead Expenses

Special members

The term special member refers to certain predefined member selections that are built-in or that users create, and are as follows:

  • All

    Short for "All Members in the Hierarchy," the All member is a convenient way to select every member in the dimension.

  • Default

    To publish a model, every dimension is required to have a Default member defined. In Model Manager, the Default member appears at the bottom of the dimension hierarchy.

    When a model is created, and the member hierarchies are still undefined, to make the model publishable the following preset Default members are provided:

    • Account: (DefaultAccount) DefaultAccount

    • Time: (All) All

    • Time Perspective: (Base) Base

    • Version: (Act) Actual

    • Geography (where parent-child or level-based): (All) All

    • Currency: (Native) Native

    • Allocation: (Total) Total

    • DPO: (All) All

    • Employee: (All) All

    • Other (where parent of level-based): (All) All

     Tip:   Default members can also provide convenience. For example, in a set of monthly reports, instead of specifying a specific member of the Time dimension, the reports specify the Default member; subsequently the administrator only needs to change the default member to the current month and the all the reports are automatically updated.

     Note:  Each time you define the Default member, a revision The set of changes that occurred in a dimension between saves in Model Manager. is created. For the change to take effect throughout the application, you must publish the model.

Custom member properties

Every dimension member is allowed any number of user-defined properties. These custom properties are optional and are defined by the administrator.

For example, for a product dimension, you could add the property Size. The property would not affect or be used in the dimension's structure, but would be available for use in such features as dynamic selections, searches, and calculations.

In Model Manager, custom properties appear in the Member Properties drawer, in their own subsection.

A custom member property has a Data type attribute, which can be any of the following:

  • Text

  • Date

  • Numeric

  • True/False

  • Member of dimension

To apply a custom property to a member, select the member and input the appropriate value to the property.
