Workflow task types

A workflow designer has the following types of tasks available to add to a project.

Data Entry

The Data Entry task presents the owner with a template for adding or editing data. The owner submits the data to an approver, who reviews it and either approves it, completing the task, or rejects it, which returns it to the owner for changes. The owner then re-submits the data. This cycle can be repeated as many times as necessary

  • File type: Template
  • Roles: Owner, Alternate Owner, Approver, Observer
  • Statuses: Not Started, Work in Progress, Submitted, Rejected, Approved/Completed

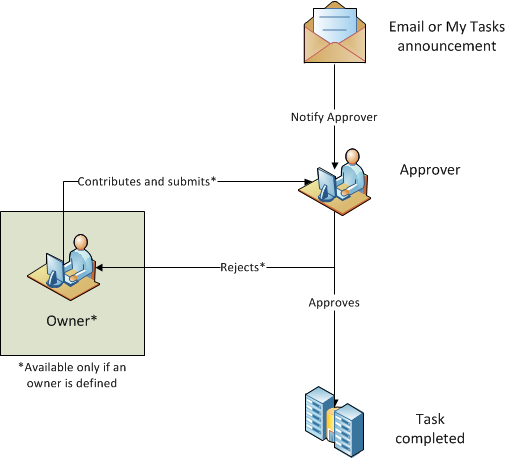

Approval Only

Assigns either data-entry templates or reporting templates to users to approve data. Optionally, you can add an owner or alternate owner to the task; doing so means that the approver has the chance to reject the data (which has been imported from outside the workflow). If the approver rejects the data, the owner receives the task, makes changes to the data, and submits the changes to the approver. The approver can again reject the data, or approve it and thus complete the task.

  • File type: Template
  • Roles: Owner, Alternate Owner, Approver, Observer
  • Statuses: Not Started, Waiting, Rejected, Approved/Completed

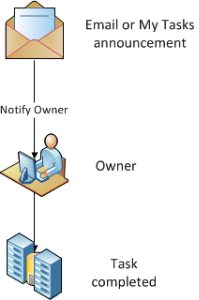

To Do

Has no set action; these tasks are simply reminders, underlining priorities, or a list of To-Do items that are displayed on the Task List on the home page.

  • File type: Text
  • Roles: Owner, Alternate Owner, Observer
  • Statuses: Not Started, Waiting, Approved/Completed

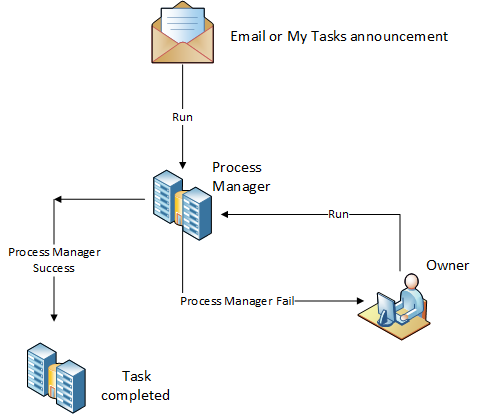

Process

A workflow task that runs in Process Manager is known as a Process task. Similar to regular process groups, which can be run at specified times on a schedule, a Process task runs when the workflow meets the starting conditions of the task.

  • File type: Process
  • Roles: Owner, Alternate Owner, Observer
  • Statuses: Not Started, Waiting, Running, Failed, Approved/Completed

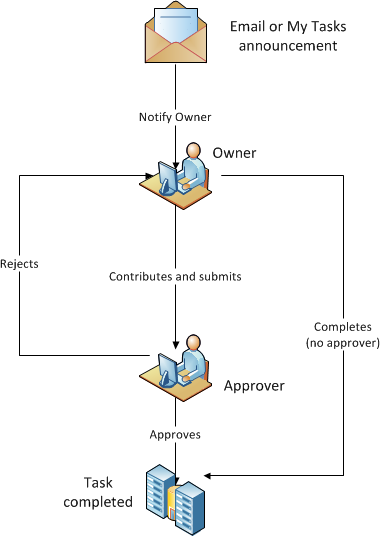

Detailed Planning

Permits data entry to a Detailed Planning Schedule. This type of activity can also have up to two review templates.

  • File type: Template or Detailed Planning Schedule
  • Roles: Owner, Alternate Owner, Approver, Observer
  • Statuses: Not Started, Work in Progress, Submitted, Rejected, Approved/Completed
